MINI · CAM M1350
THE NEW STANDARD IN ROTARY CAM SWITCHES
-
Solid-state replacement
of electromechanical cam
switches
-
4, 8, 12, or 16-outputs
-
Compact size; eight
outputs in four-output housing
-
Noncontact switching
assures operation up to
2,000 rpm without contact bounce
-
Optically isolated AC
or DC outputs provide noise
immunity
-
90 VDC outputs for
clutch/brake control
-
Pulse generating discs
for counters, rate meters, or
multiple outputs per channel
-
Easy to install and
set-up
-
Built-in resolver for
PLS interface or position/tach
feedback
-
Fully gasketed JIC
Enclosure

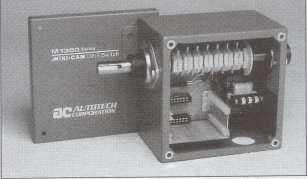

THE M1350
The
Mini·CAM, model M1350, is an excellent substitute for the cam disc passes or interrupts the light beam through the
electromechanical rotary cam limit switches. Like rotary cam
switches, the Mini·CAM
is used to control outputs based on the position of the shaft to

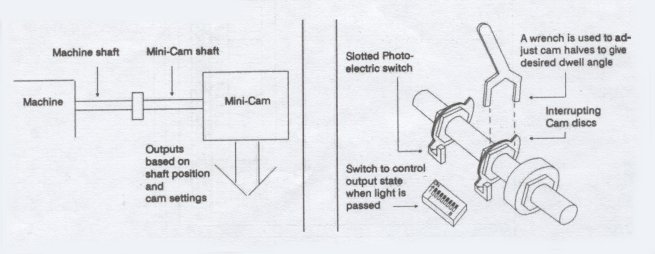

which it is coupled. See block diagram
below. The Mini·CAM utilizes slotted photoelectric switches and
interrupting cam discs mounted on a rotating shaft. The cam discs
consist of two halves that
|
can
be adjusted to create any required dwell. When Mini·CAM shaft
rotates, photoelectric switch at appropriate
shaft angles, depending upon
the cam disc adjustments. The DIP switches are provided to select
the outputs to turn on when light is interrupted, or when light is
passed. The solid-state switching, ease of setup and improved
accuracy help increase the productivity of your machine. |
