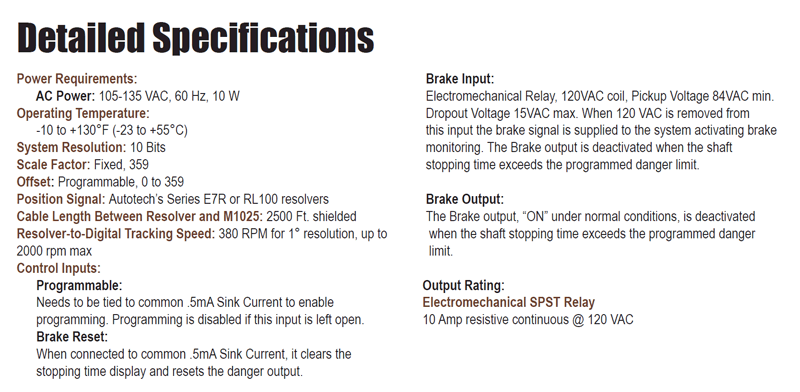

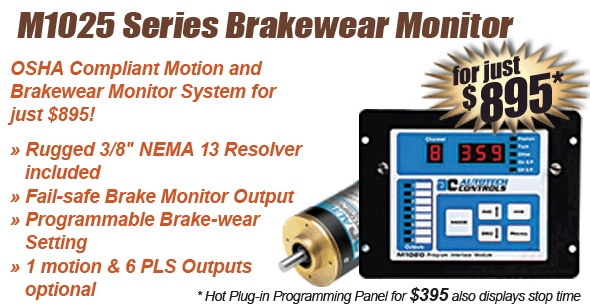

Power Requirements:
AC Power: 105-135 VAC, 60 Hz, 10 W
Operating Temperature:
-10 to +130°F (-23 to +55°C)
System Resolution: 10 Bits
Scale Factor: Fixed, 359
Offset: Programmable, 0 to 359
Position Signal: Autotech’s Series E7R or RL100 resolvers
Cable Length Between Resolver and M1025: 2500 Ft. shielded
Resolver-to-Digital Tracking Speed: 380 RPM for 1° resolution, up to
2000 rpm max
Control Inputs:
Programmable:
Needs to be tied to common .5mA Sink Current to enable
programming. Programming is disabled if this input is left open.
Brake Reset:
When connected to common .5mA Sink Current, it clears the
stopping time display and resets the danger output. |
Brake Input:
Electromechanical Relay, 120VAC coil, Pickup Voltage 84VAC min.
Dropout Voltage 15VAC max. When 120 VAC is removed from
this input the brake signal is supplied to the system activating brake
monitoring. The Brake output is deactivated when the shaft
stopping time exceeds the programmed danger limit.
Brake Output:
The Brake output, “ON” under normal conditions, is deactivated
when the shaft stopping time exceeds the programmed danger
limit.
Output Rating:
Electromechanical SPST Relay
10 Amp resistive continuous @ 120 VAC |
