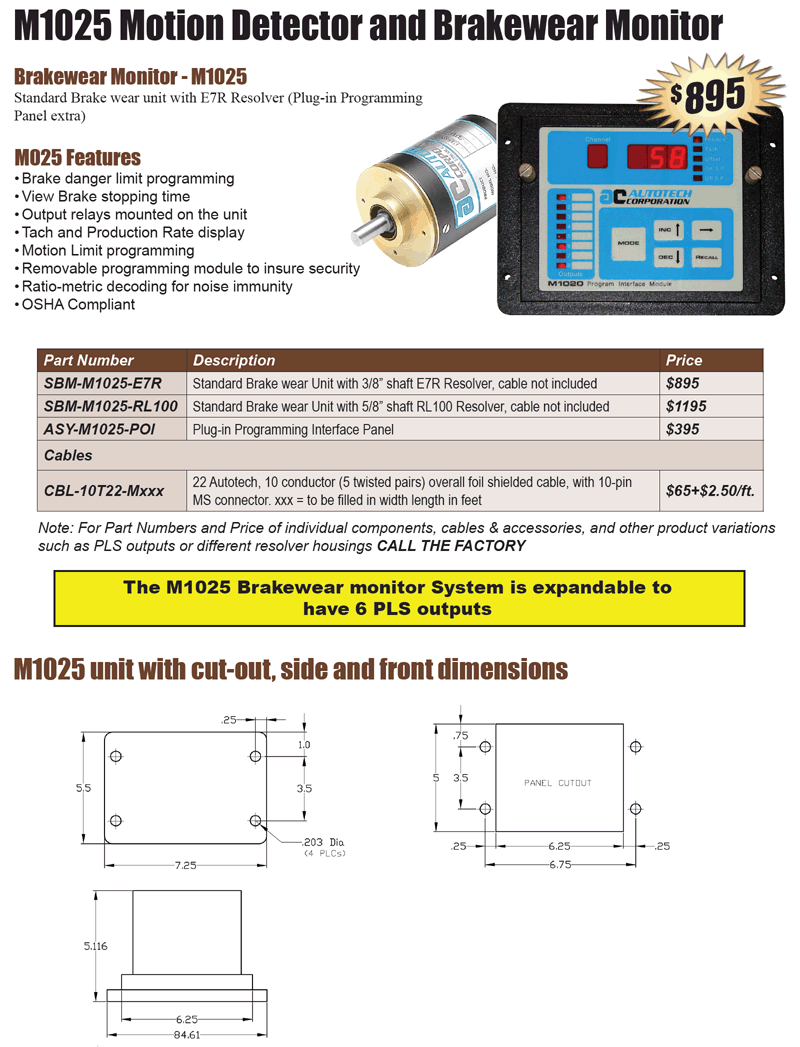

M1025 Motion Detector and Brakewear Monitor OSHA Compliant Motion and Brakewear Monitor System for just $895 » Rugged 3/8" NEMA 13 Resolver included » Fail-safe Brake Monitor Output » Programmable Brake-wear setting » 1 motion & 6 PLS outputa optional » Order your Short Form Catalog Affordable Die Protection, PLS, Brake, Shut-Height & Tonnage Monitor M1025 Motion Detector and Brakewear Monitor Brakewear Monitor - M1025 Standard Brake wear unit with E7R Resolver (Plug-in Programming Panel extra) M1025 Features • Brake danger limit programming • View Brake stopping time • Output relays mounted on the unit • Tach and Production Rate display • Motion Limit programming • Removable programming module to insure security • Ratio-metric decoding for noise immunity • OSHA Compliant Part Numer Description Price SBM-M1025-E7R Standard Brake wear Unit with 3/8” shaft E7R Resolver, cable not included $895 SBM-M1025-RL100 Standard Brake wear Unit with 5/8” shaft RL100 Resolver, cable not included $1195 ASY-M1025-POI Plug-in Programming Interface Panel $395 Cables CBL-10T22-Mxxx 22 Autotech, 10 conductor (5 twisted pairs) overall foil shielded cable, with 10-pin MS connector. xxx = to be filled in width length in feet $65+$2.50/ft. Note: For Part Numbers and Price of individual components, cables & accessories, and other product variations such as PLS outputs or different resolver housings CALL THE FACTORY The M1025 Brakewear monitor System is expandable to have 6 PLS outputs M1025 unit with cut-out, side and front dimensions
