Linear Transducer based Shut-Height Monitor
The M1450 series Shut-Height monitor uses linear ultrasonic rod as
its position feedback device. Ultrasonic transducers are easier to
mount on the shut-height mechanism, however the cost increases in
proportion to maximun shut-height of the press |
Bright LED Display
6 digit LED display indicates shutheight
as well as 8 programmable
PLS limits associated with the shutheight |
 |
| Splash-proof oil tight front plate |
| Tactile Keyboard designed
for simple front panel
Programming |
 |
Ultrasonic linear transducer
from 12” - 108” |

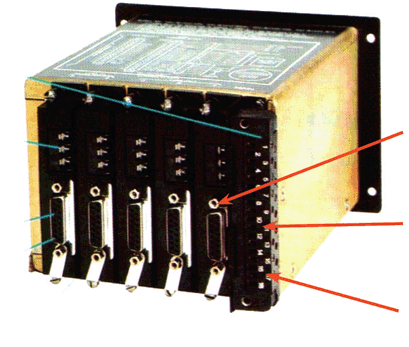

| 8 PLS Outputs expandable to 40 |
| Main terminal block for power input 115/220VAC and transducer connection |
| Program Enable/Disable contacts to avoid unauthorized program changes |
 |
|
|
| Simple to Program Linear Shut-Height Monitor |
| Principle of Operation |
Linear Ultrasonic Transducer |
| The M1450 programmable shut-height monitor consists of two parts, one being a linear transducer mounted on the shut-height mechanism and the other, a programmable unit mounted in the Press control panel. The position signal is scaled and displayed on the front panel, which indicates shut-height in appropriate engineeirng units. There are 8 programmable limits that monitor shut-height value than provide alarm outputs.. |
The M1450 reads the linear travel with 0.001” resolution and up to 108” of travel. This unit utilizes an ultrasonic transducer to monitor the linear position of a shut-height mechanism by the movement of a 1.3” diameter magnet ring over a 3/8” diameter stainless steel rod. An ultrasonic wave travels along side the stainless steel tube and is reflected by the magnet. Time measurement of the ultrasonic wave determines the position of the magent from the base of the transducer. |
| Easy Calibration |
Drift Monitor |
| The M1450 requires calibration at the time of installation. The calibration process tells the M1450 the characteristics of the linear rod being used. Calibration is extremely easy. All that is required is entering a number printed on the label of linear rod. |
Shut-height drift is monitored against a programmed upper and lower limit and an appropriate output is generated if shut-height is outside the limit. |
| Programmable Scale Factor |
Upper and Lower Travel Limits |
| The base measurement from the transducer can be converted to any engineering unit by a programmable scale factor. |
A second PLS channel can be programmed to generate an alarm output if shut-height exceeds upper limit or is below the lower limit. |
| External Program Enable/Disable |
|
| Limit comparison can be disabled by an external input |
|
