| Intuitive, Simple to Program without PC or Software,
Shows Position /RPM on 4-digit LED Display |
|
• A15, A25, A40 Smart EncoderTM
• Robust, NEMA 4, Class I, DIV II,
Conformal Coated boards,
Aluminum
or Stainless Steel Housing
• Size 25 Drop-in-Replacement for
BEI/Dynapar |
|
Order your
FREE Hand Book
All you ever wanted to know about encoders and how to properly interface with
Automation Controllers
 |
|
 |
|
 |

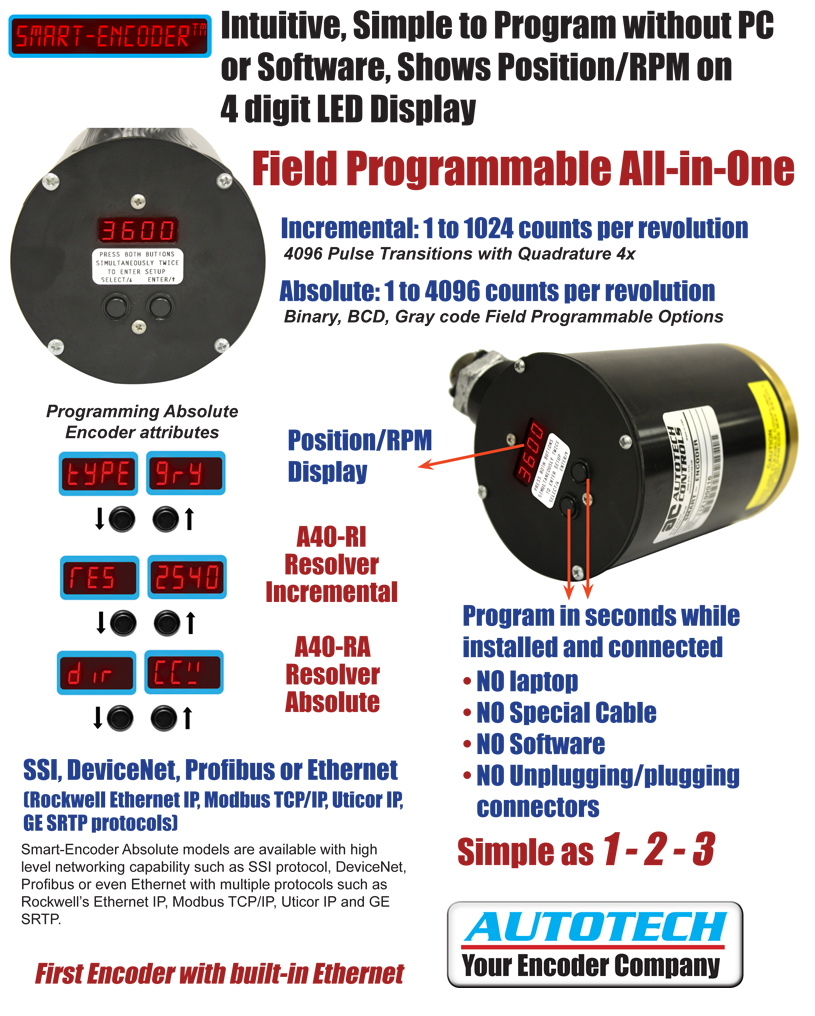

Intuitive, Simple to Program without PC or Software, Shows Position/RPM on 4 digit LED Display |
 |
 |
Field Programmable All-in-One |
|
Incremental: 1 to 1024 counts per revolution
4096 Pulse Transitions with Quadrature 4x |
|
Absolute: 1 to 4096 counts per revolution
Binary, BCD, Gray code Field Programmable Options |
|
|
 |
|
| Programming Absolute Encoder attributes |
|
| Position/RPM Display |
|
 |
|
A40-RI Resolver Incremental
A40-RA Resolver Absolute |
|
Program in seconds while installed and connected
• NO laptop
• NO Special Cable
• NO Software
• NO Unplugging/plugging connectors |
|
SSI, DeviceNet, Profibus or Ethernet
(Rockwell Ethernet IP, Modbus TCP/IP, Uticor IP, GE SRTP protocols)
Smart-Encoder Absolute models are available with high level networking capability such as SSI protocol, DeviceNet, Profibus or even Ethernet with multiple protocols such asRockwell’s Ethernet IP, Modbus TCP/IP, Uticor IP and GE SRTP.
First Encoder with built-in Ethernet
|
|
| Simple as 1 - 2 - 3 |
|
 |
|
|
|
|
|
|
|
|
