| Intuitive, Simple to Program without PC or Software,
Shows Position /RPM on 4-digit LED Display |
|
• A15, A25, A40 Smart EncoderTM
• Robust, NEMA 4, Class I, DIV II,
Conformal Coated boards,
Aluminum
or Stainless Steel Housing
• Size 25 Drop-in-Replacement for
BEI/Dynapar |
|
Order your
FREE Hand Book
All you ever wanted to know about encoders and how to properly interface with
Automation Controllers
 |
|
 |
|
 |

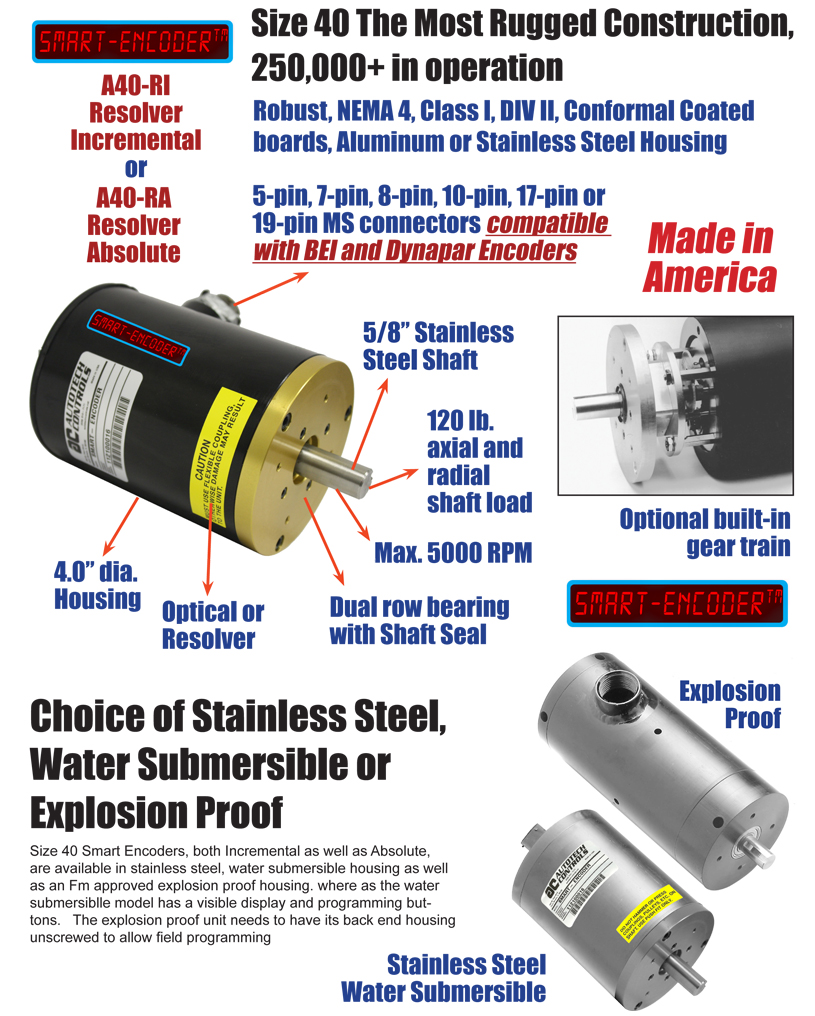

Size 40 The Most Rugged Construction,
250,000+ in operation |
 |
A40-RI
Resolver
Incremental
or
A40-RA
Resolver
Absolute |
|
| Robust, NEMA 4, Class I, DIV II, Conformal Coated
boards, Aluminum or Stainless Steel Housing |
|
| 5-pin, 7-pin, 8-pin, 10-pin, 17-pin or
19-pin MS connectors compatible
with BEI and Dynapar Encoders |
Made in America |
|
 |
5/8” Stainless
Steel Shaft |
 |
|
 |
120 lb. axial and radial shaft load |
|
| Optional built-in gear train |
|
| Max. 5000 RPM |
|
| 4.0” dia. Housing |
 |
|
 |
|
| Optical or Resolver |
Dual row bearing with Shaft Seal |
|
Choice of Stainless Steel,
Water Submersible or
Explosion Proof
Size 40 Smart Encoders, both Incremental as well as Absolute,
are available in stainless steel, water submersible housing as well
as an Fm approved explosion proof housing. where as the water
submersiblle model has a visible display and programming buttons.
The explosion proof unit needs to have its back end housing
unscrewed to allow field programming |
 |
Explosion Proof |
|
 |
|
| Stainless Steel |
|
|
|
|
|
|
|
|
|
|
|
|
|
