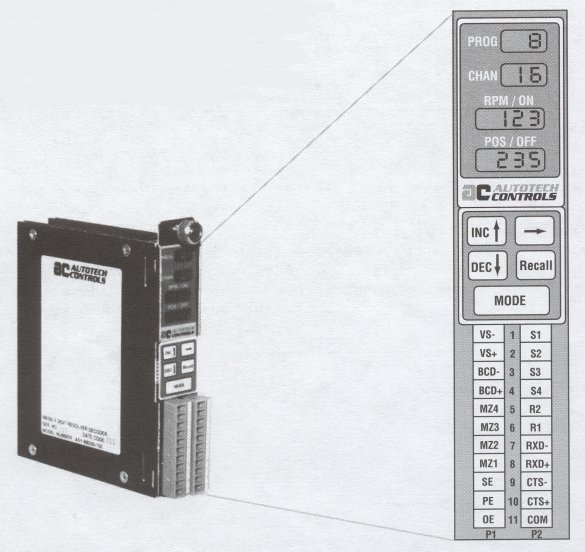

The M8251-010 and M8251-F10 PLS Modules combine 16 outputs; fault detection and indication; 8 user-defined PLS setups; and simple, easy-to-learn programming in one compact module that easily plug directly into a slot of the PLC.
If the user programs the setpoints for each channel using the front panel keys, each of the eight PLS setups supports up to 160 ON/OFF setpoint pairs that may be used in any combination of 80 each of the LOW and HIGH eight channels. When the programming is accomplished via the PLC backplane, there are only 112 ON/OFF setpoint pairs available. These may be used in any combination of 56 each on the LOW and HIGH eight channels. Also included are a fault output and a motion detector that energize when the resolver is rotating between motion limits.
Long, complex key sequences are a thing of the past. With the five self-explanatory programming keys, programming the PLS is extremely simple. Most programmed values can be adjusted with the machine running, making fine-tuning of job parameters easy. To avoid unauthorized setpoint and setup changes, setting the Program Enable (PE) FALSE prevents tampering.
The PLS can store up to 8 independent, user-defined PLS setups for different jobs. The unit can accept either a
front panel entered, PLC backplane command, or a serial link input command to select a particular, stored setup.
|
Features include:
- Fully isolated
I/O
- Electronic Offset Aligns PLS Zero to Machine Zero
- Loads PLS Setups from the Backplane or PC
- Broken Resolver Wire Detection
- Position, RPM, and Output Status Available to Backplane
- Output Update Time Independent of PLC Scan Time
- 16 Individually Programmable PLS Outputs
- RS-485A Multidrop Serial Link
- Programmable Under-/Over-Speed Limits for Motion Control
- Independent Speed
Compensation Available for Each PLS Output
- Brake Monitor,
Tach, and ModZ
|
