MOUNTING

Choice of Back Panel or NEMA Enclosure Mounting

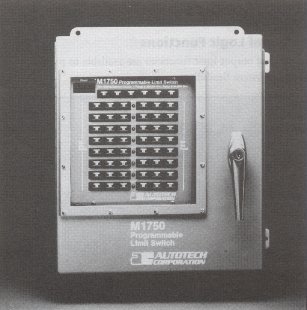

The standard M1750 PLS chassis can be mounted inside the customer's control panel together with other controls or inside a NEMA 12 enclosure M1700-N with a solid cover or M1700-W with a Plexiglas see through window. The see through window allows the thumbwheel setpoints to be visible, while it protects the PLS inside. A locking handle on the cover assures program security. Inside the enclosure, there is a removable NEMA 1 plate covering the terminal blocks, while retaining easy access to the thumbwheels.

Accessories
BCD outputs from main terminal block can be wired to a remote readout like AVG Automation's RD360 display unit or RD999 display/tachometer unit. Also one bit of BCD can be wired into AVG Automation's PS111 (zero speed switch) or PS112 (over-/under-speed switch) for detecting unsafe operation.
