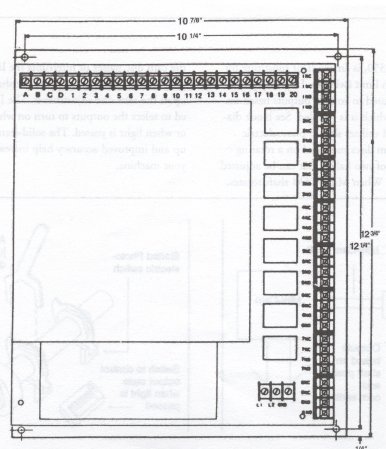

M1750
PLS SPECIFICATIONS
Input
Power: 105-135 VAC, 50/60 Hz, 50 W exclusive of
load (Optional
220 VAC)
Operating Temperature: -10°F
to 130°F (-23°C to 55°C)
Position Transducer: Resolver, AVG Automation's
series
RL100, E7R,
E8R, and RL101 or Absolute Digital
Encoder, AVG Automation's
DigiSolver part
E5N-DO360-5MOMx
System Resolution: I° or 0.36°
Resolver-to-Digital Decoder Tracking Speed: 1800 RPM
Offset:
Offset Range: Adjustable 0
to full revolution
Offset Entry: From front
panel with thumbwheels or
external input
High-Logic: TRUE
Logic FALSE: 0-1
VDC
Logic TRUE: 4.5-5 VDC
Format: 10- or 12-lines.
Current draw: <1 mA
Offset Connector: Unit comes
with MS3110F-14-19P.
The mating receptacle MS3116F-14-19S is
to be wired
and supplied by customer.
Maximum Cable Length from Resolver to M1750:
2500
feet shielded
|
OUTPUTS:
Number of Output Channels Per Chassis:
8 or 12 standard
Maximum Number of Output Channels Per Transducer:
48, (6 x 8-channel or 4 x 12-channel
chassis in parallel)
Output to Secondary Chassis or other External Devices:
Format: 10 or 12-line BCD, High-Logic TRUE;
Logic TRUE: 2.5 V drop @ I mA source current
Logic FALSE: 0.4 VDC @ 2.4 mA sink current.
Output Inhibit: Dry contact closure between C & D
will
disable all the outputs.
ModZ Reset Signal: Dry contact closure or logic level
low
(0 to I VDC).
OUTPUT
RATINGS:
KDD-012DC-10SIG: 1 NO + 1 NC relay contacts rated at
10 A (resistive) at 125 VAC
KSS-120AC-ERI: 3 A, 120 VAC, solid-state AC module,
max ON voltage: 1.5 V, turn ON time: 150
µs (typ.); turn
OFF time: 8 ms (typ.); leakage: 10 mA
(max)
KSS-055DC-ERI: 2 A, 3-40 VDC, solid-state DC module,
max. ON voltage: 1.5 V, turn ON time: 15
µs (typ.); turn
OFF time: 100 µs (typ.); leakage: 100 mA
(max.)
KSS-AC/DC-ERI: Low leakage (<0.1 mA) AC/DC
solid-state module, 135 VAC (rms) @ 0.35
A or 190
VDC (max) @ 0.5 A, turn ON voltage: 3 V,
turn ON time:
10 µs (typ.) turn OFF time: 100 µs (typ.)
leakage: 100
mA (max.)
|
